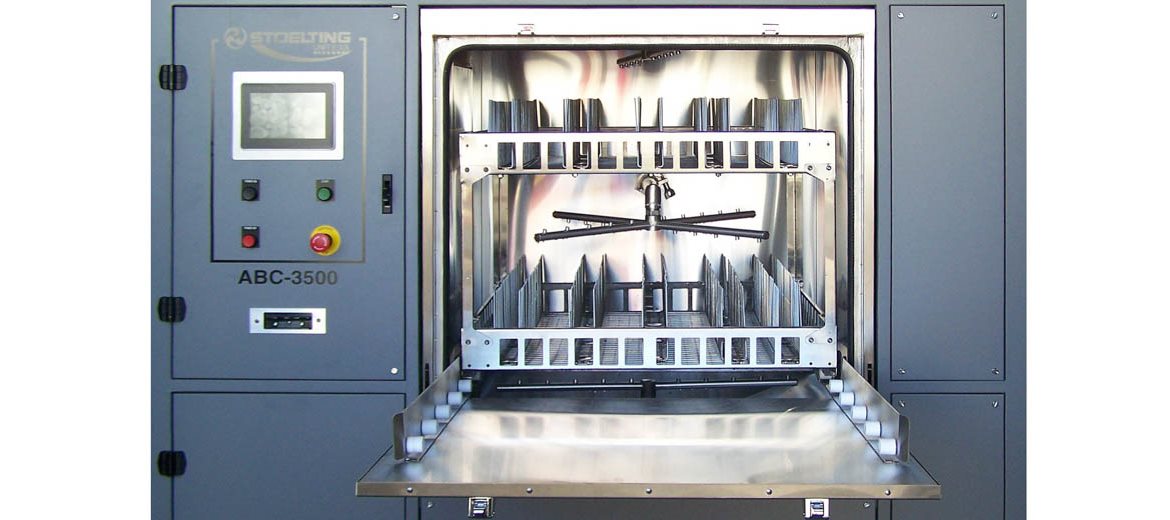

ABC-3500 Aqueous Batch Cleaners

The ABC-3500 is a large format Aqueous Batch Cleaner which allows the customer to clean large dimension printed circuit boards removing rosin, water soluble and no-clean fluxes. Also the large chamber enables high quantities of smaller boards to be processed as well. The ABC-3500 is also capable of removing dirt, cutting oils, and contaminants from a variety of manufactured components. The results of this cleaning process meet all military and commercial specifications. The ABC-3500 of cleaners can be customized to meet all of your cleaning needs. Units may be fully or partially closed-loop. Options include wash water recycling, rinse water recycling or both. De-ionized water systems are also available. For your water only applications, we offer a completely closed loop unit.

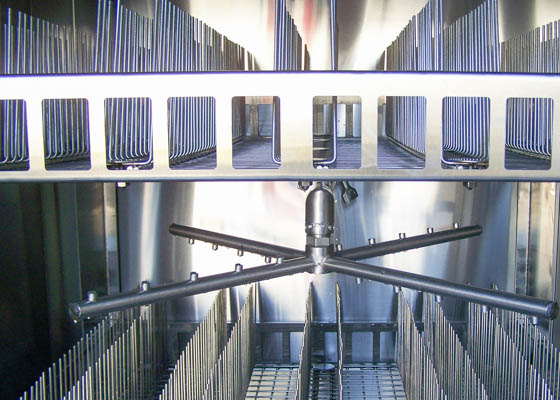

Cleaning Chamber

Capacity

With the standard cleaning rack the ABC-3500 can handle many large, heavy boards. An available dual rack can handle very high quantites of smaller boords, sometimes triple the capacity of standard aqueous batch cleaners.

Industrial

The ABC-3500 is designed from the ground up for an industrial cleaning process. The cleaning chamber of the is constructed from thick 16 gage 304 stainless steel, as opposed to the thin stainless steel of a residential dishwasher or lab glasswasher. This along with a door designed for industrial use will ensure many years of service from the system.

Powerful

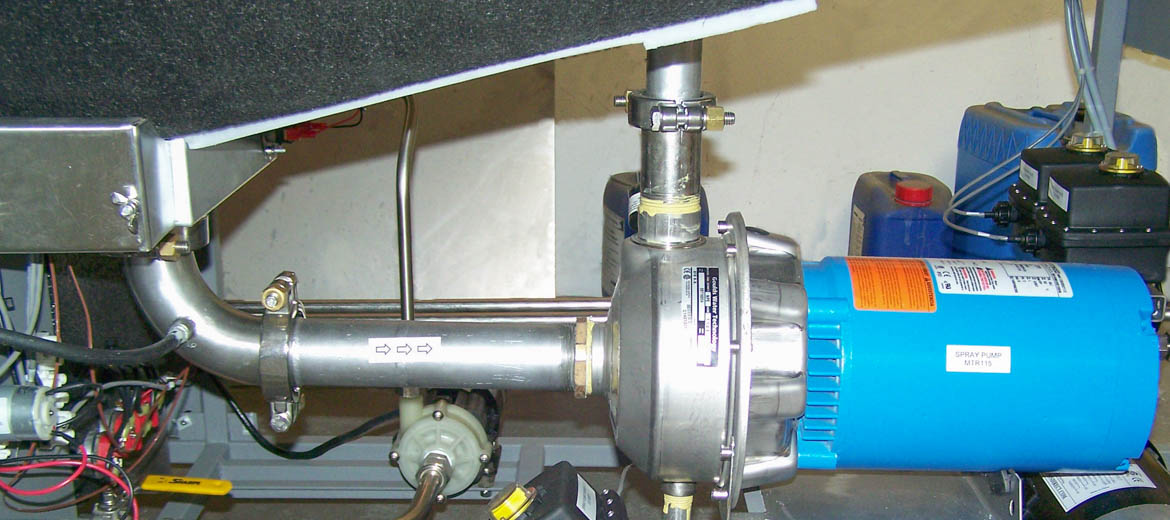

A high flow, medium pressure spray system provides both the high flow rates desired for many of the most popular cleaning chemicals and enough pressure to remove contaminants without damaging sensitive boards.

Flexible Chemical Management

Open Loop

All ABC Series Batch Cleaner models come standard with a feeder pump capable of metering cleaning chemical directly into the cleaning chamber. This allows for easy startup of a cleaning process, quick chemical testing and also injection of rinse aids. Chemical injected this way is sent to drain creating an open loop cleaning process.

Closed Loop

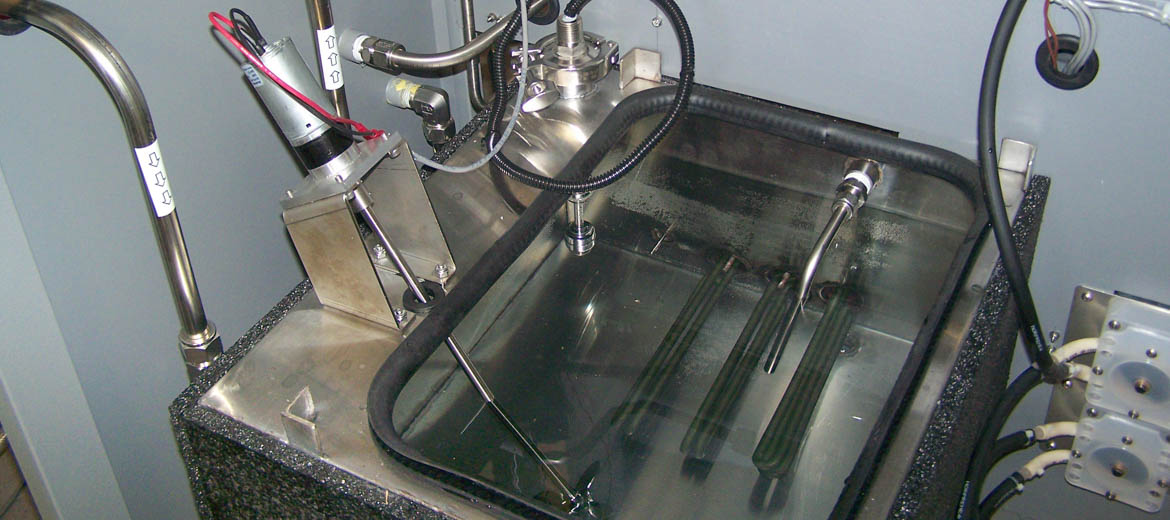

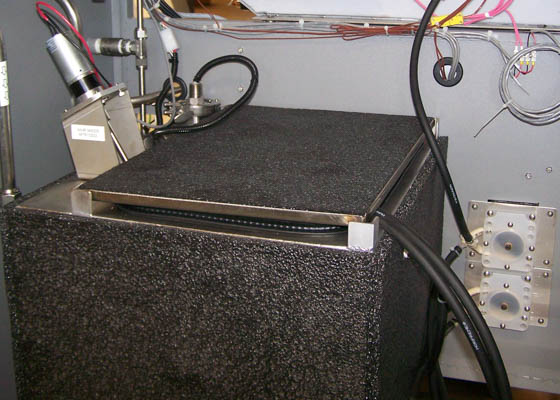

The available Wash Water Recycling System allows the use of a closed loop washing process. The cleaning chemical solution is stored in a heated tank for reuse over and over. This provides substantial chemical cost savings. Once the recommended use period is over, the tank is drained and the machine automatically refills the tank with the programmed mixture of chemical and water.

Compatible

The stainless steel plumbing of the ABC Series provides for compatibility with all of the common aqueous cleaning chemicals used in the electronics industry.

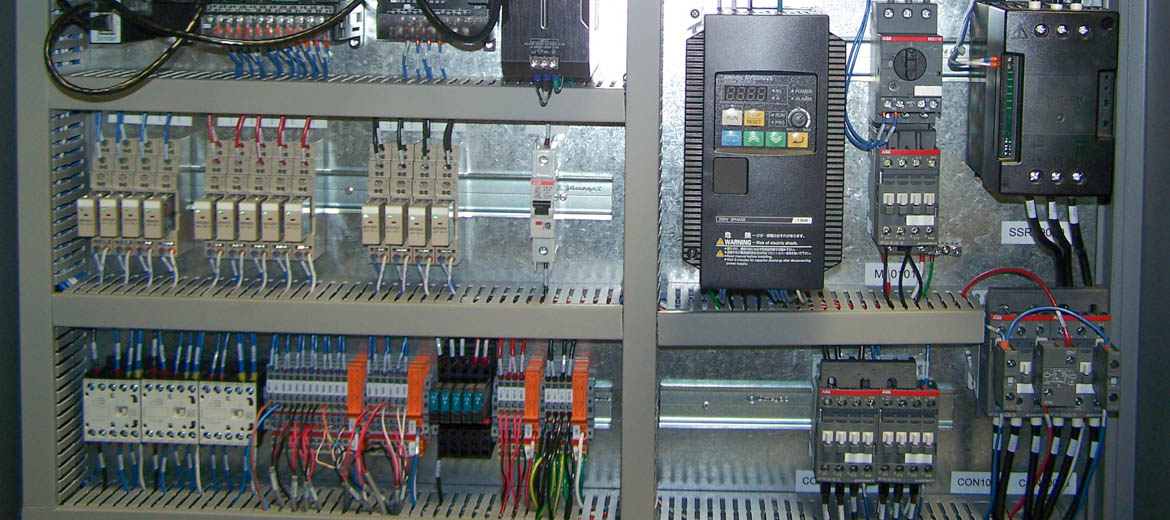

Control

Resistivity

With its built-in resistivity monitoring system, the ABC-3500 can be programmed by an operator to achieve a desired resistivity (cleanliness) set point, assuring the degree of product cleanliness.

Touchscreen

The touchscreen operator interface lets you set new parameters in seconds. Using the touchscreen the operator can setup, store and recall all of the process parameters from a central location.

Network

Available ethernet connectivity allows process cycle records to be retrived over a company network.

Documentation

The available data logging printer records the set and actual parameters from the process at each step during the cleaning cycle. This provides documentation for cleaning process quality assurance or for use in a statistical process control system.


Water Heating

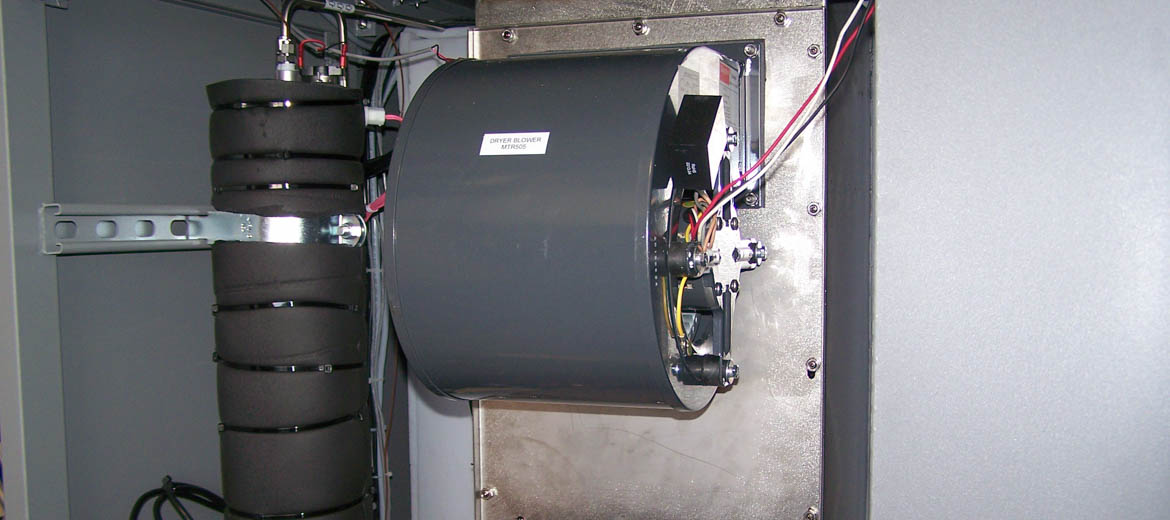

The ABC series is equipped with a built-in water heating system. Water enters the machine and is pre-heated with the 18,000 watt on-demand heater and is then transferred into the cleaning chamber sump. In the sump, a separate 6,000 watt heater holds the wash or rinse water at the precise user programmed temperature. This system enables the use of heated rinse cycles, which are recommended by most cleaning chemistry manufacturers. Also, by heating the water as it is needed, the user can program different temperatures for each step of the cleaning process.

Water Recycling

The Rinse Water Recycling (RWR) system reduces or even eliminates the need to send your rinse water to drain. This reduces the load on an evaporator or waste treatment system, reducing operating and energy costs. This is an excellent choice when you are using water soluble fluxes as the system is completely closed loop. The RWR can clean the rinse water (in the case of R, RA, RMA or No-Clean fluxes) or both the wash and rinse water in the case of OA fluxes.

Drying

The ABC Series provides a fast, efficient forced air flow with temperatures up to 250 °F (120 °C), providing uniform drying throughout the cleaning chamber. Engineered with a cross ventilation design, the ABC-3500 has the most effective drying system in the aqueous batch cleaning market today.

ABC-3500
Cleaning Volume
Width 31 in
Depth 30 in
Height 26 in
Max. Board Size 30 in x 27 in
Spray System
Pump Power 3 hp
Spray Liquid Flow 90 gpm
Spray Liquid Pressure 34 psig
Upper Spray Nozzles 20 at 35 deg
Lower Spray Nozzles 20 at 35 deg
Systems
Inlet Water 18 kW
Cleaning Chamber Sump 6 kW
Forced Air Convection 18 kW
Chemical Tank (WWR Option) 4.5 kW
Utilities
Electrical Options 208VAC 3Ph 50A 60Hz
480VAC 3Ph 30A 60Hz
380VAC 3Ph 40A 50Hz
Incoming Water 1/2 NPT
Drain 1/2 NPT
Exhaust Venting 6 in, 0 cfm
Dimensions
Width, Standard 70 in
Width, with RWR Option 78.5 in
Depth 36 in
Height 67 in
Weight 1200 lb
